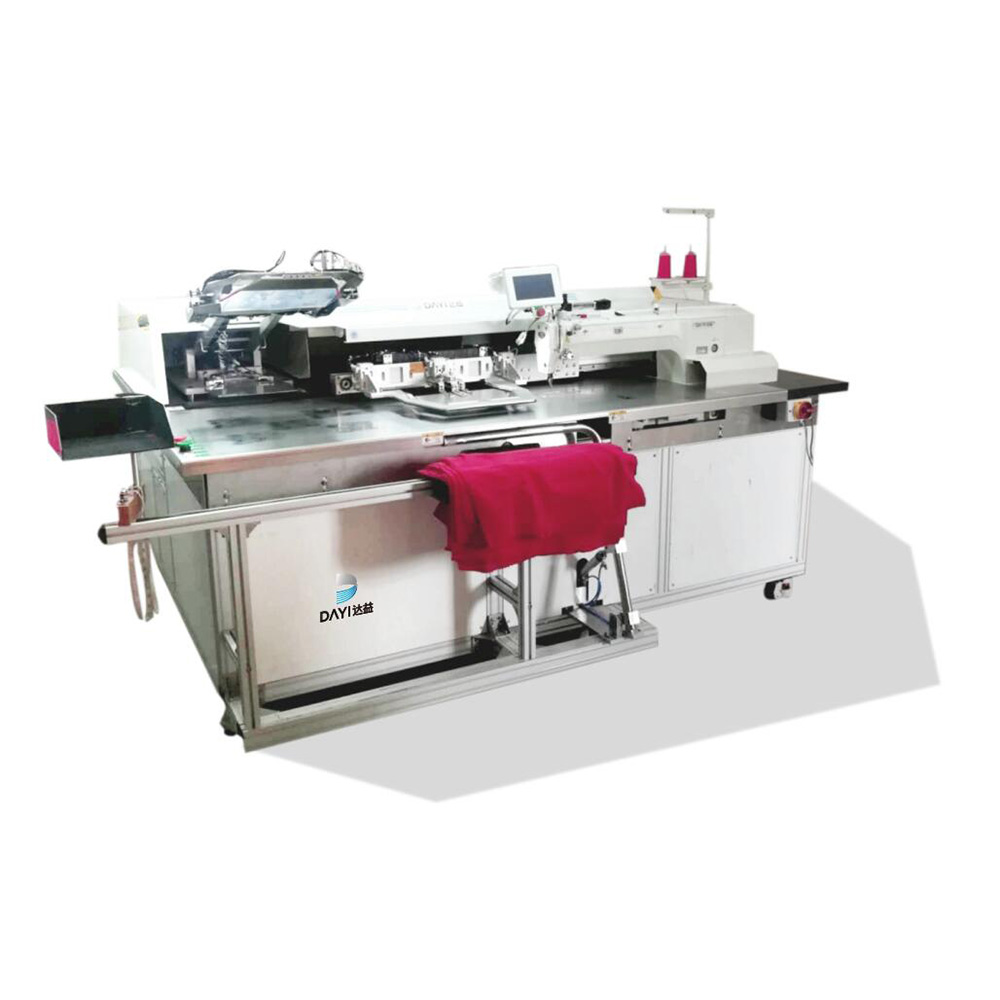

Intelligent non-ironing bag-sticking machine DYE-05-AL

I. Introduction

Needles: Dpx17 9#-23#

Power: 750W

Voltage: Single phase 220V AC 50/60Hz

Control system: JOOKE developed system

Pressed Air and Usage: 0.5Mpa 1.8L/min

Machine Dimension: 1600(Long)X280(Wide)X1300(High)mm

Net weight: 560kg

II.Functions

1.Automatic ironing free function

A.Without ironing process,no high temperature for pocket,so no color difference between pocket and adjacent area to make a perfect color match.

B.Iron-free device template can be adjusted acccording to the shape of pocket.
C.Automatic folding:the most advanced folding technology & two times folding technology for pocket (patent no:ZL20152 0224862.2).

2.Pressing frame devices
A.During automatic sewing process,in order to have more precise position,inside pressing frame can be adjusted bigger or smaller size according to various sewing requirements Flexible inside pressing frame device(patent number:ZL2015 2 0238582.7).

3.Programmable control system
A.Self-made pattern independent research and development control system, and different sewing stitches pattern can be easily made by different program, making sewing process more user-friendly.

B.Independent touch screen operating panel and full servo control enables us to control and adjust in more convenient and simpler way.

4.Stable vacuum device
A.Vacuum device is steady and fixed for fabrics,preventing the movement of cloth in the process of sewing.

B.The application of vacuum devices make sewing more smooth and well balanced,which helps to sew in high efficiency way.

5.Automatic bobbin door
A.In order to increase the output and maintain ergonomic design,added automatic door-opening design make replacing the bobbin, adjusting the hook and threads trimming more intelligent.

6.Automatic receiving device (Optional device)

A.In order to make automatic receiving more reasonable,carefully designed automatic rolled receiving device has overcome the shortcomings that short cloth could not be automatic received.with automatic feeding device patent （No.ZL 201520238572.3).

III. Features

    1.Automatic iron free folding,automatic feeding,automatic sewing,automatic receiving,automatic presser lift foot, automatic thread trimmer,automatic barback.
    2.Auto stop on thread breaking,auto counting,patterns auto saving,auto clipping,auto loose,auto hook door,auto inside frame adjustable,and automatic vacuum device.
    3.Adjstable frame system can adopt to heavy material pockets,and easy to replace frame.

IV.Main Parameter

Model	DYE-01-AL	Head	Brothers 5040 prototype (Other brand as optional)
Head speed	2600RPM	Max sewing area	450mmx500mm
Voltage	Single phase 220V AC 50/60Hz	Pressed Air and Usage	0.5Mpa 1.8L/min
Fabrics	Jeans, knits, woven, etc	Sewing quantity	120pcs/h (200)needle
Pattern design	Programmable	Power expense	0.5 kwatt-hour/hour
Pattern storage	999 pcs available and odditional USB storage	Stich	0.05-12.7mm
Needles	DpX17 9#-23#	Presser foot lift height	20mm
Feeding & collection model	Automatic	Oil supply mode	Automatic Light-Oil
Position lasers lights	Optional	Sewing mode	Automatic
Table height range	Adjustable (850-950)mm	Control system	JOOKE developed system
Stich type	Single lockstich sewing	Pneumatic components	SMC Japanese standard
Net weight	980kg	Gross weight	1280kg
Machine dimension	1600mmx1280mmx1300mm	Unit package dimension	2070mmx1460mmx1460mm
